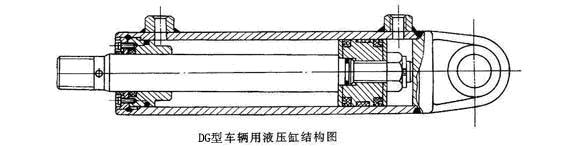

本系列液压缸主要用于工程机械、起重运输机械、矿山设备及其他车辆上的液压系统中。其安装方式为耳环式,均为双作用单活塞杆液压缸。

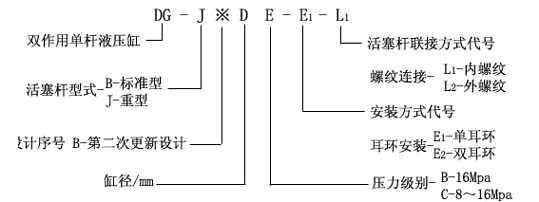

型 号 说 明
DG型液压缸技术规格
缸径 | 活塞杆直径 | 活塞面积/(10-4cm2) | 推力/KN | 拉力/KN | 最大行程 | |||
D/mm | d/mm | 大端 | 小端 | 14Mpa | 16Mpa | 14Mpa | 16Mpa | /mm |
40 | 22 | 12.57 | 8.77 | 17.6 | 20.11 | 12.28 | 14.03 | 1500 |
50 | 28 | 19.63 | 13.48 | 27.48 | 31.41 | 18.87 | 21.57 | 1500 |
63 | 35 | 31.17 | 21.55 | 43.64 | 49.87 | 30.17 | 34.48 | 2500 |
70 | 40 | 38.48 | 25.92 | 53.87 | 61.57 | 36.29 | 41.47 | 2500 |
80 | 45 | 50.27 | 34.36 | 70.38 | 80.43 | 48.1 | 54.98 | 2500 |
100 | 55 | 78.54 | 54.78 | 109.96 | 125.66 | 76.69 | 87.65 | 6000 |
110 | 63 | 95.03 | 63.86 | 133.04 | 152.05 | 89.4 | 102.18 | 6000 |
125 | 70 | 122.72 | 84.23 | 171.82 | 196.35 | 117.92 | 134.77 | 8000 |
140 | 80 | 153.94 | 103.67 | 215.52 | 246.3 | 145.14 | 165.87 | 8000 |
150 | 85 | 176.71 | 119.97 | 247.39 | 282.74 | 167.96 | 191.95 | 8000 |
160 | 90 | 201.06 | 137.44 | 281.48 | 321.7 | 192.42 | 219.9 | 8000 |
180 | 100 | 254.47 | 175.93 | 356.26 | 407.15 | 246.3 | 281.49 | 8000 |
200 | 110 | 314.16 | 219.13 | 439.82 | 502.66 | 306.78 | 350.61 | 8000 |
220 | 125 | 380.13 | 257.41 | 532.18 | 608.21 | 360.37 | 411.86 | 8000 |
250 | 140 | 490.87 | 336.94 | 687.22 | 785.39 | 471.72 | 539.1 | 8000 |
280 | 150 | 615.75 | 439.04 | 862.05 | 985.2 | 614.66 | 702.46 | 8000 |
320 | 180 | 804.25 | 549.78 | 1125.8 | 1286.8 | 769.69 | 879.65 | 8000 |

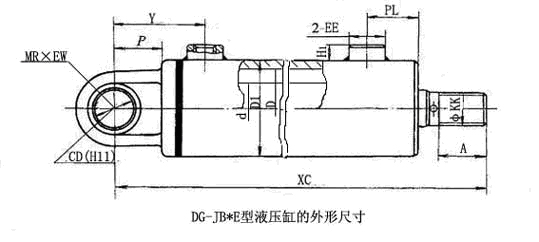

缸径 D | d | D1 | MR×EW | CD | Y | 2-EE | H1 | PL | φKK | A | XC |
50 | 28 | 70 | 25×28 | 20 | 66 | 22×1.5 | 15 | 52 | M24×1.5 | 25 | 242 |
63 | 35 | 83 | 30×40 | 32 | 84 | 22×1.5 | 15 | 59 | M30×2 | 40 | 260 |
70 | 40 | 90 | 35×45 | 36 | 86 | 22×1.5 | 15 | 65 | M36×2 | 40 | 285 |
80 | 45 | 102 | 40×50 | 40 | 89 | 22×1.5 | 15 | 72 | M42×2 | 56 | 309 |
100 | 55 | 127 | 50×63 | 50 | 102 | 27×2 | 20 | 78 | M48×2 | 63 | 351 |
110 | 63 | 140 | 55×75 | 55 | 120 | 27×2 | 20 | 85 | M56×2 | 75 | 390 |
125 | 70 | 152 | 62×80 | 63 | 133 | 27×2 | 20 | 90 | M64×3 | 85 | 420 |
140 | 80 | 168 | 65×80 | 65 | 145 | 33×2 | 25 | 95 | M72×3 | 85 | 450 |
150 | 85 | 180 | 71×80 | 70 | 155 | 33×2 | 25 | 100 | M80×3 | 95 | 475 |
160 | 90 | 194 | 80×85 | 80 | 167 | 33×2 | 25 | 103 | M80×3 | 95 | 500 |
180 | 100 | 219 | 90×95 | 90 | 190 | 42×2 | 25 | 108 | M90×3 | 106 | 554 |
200 | 110 | 245 | 100×105 | 100 | 205 | 42×2 | 25 | 118 | M100×3 | 112 | 594 |
220 | 125 | 280 | 100×105 | 110 | 215 | 48×2 | 30 | 135 | M110×3 | 112 | 680 |
250 | 140 | 312 | 110×110 | 120 | 245 | 48×2 | 30 | 140 | M125×4 | 125 | 720 |
280 | 150 | 344 | 120×120 | 130 | 255 | 52×2 | 40 | 160 | M140×4 | 140 | 810 |
320 | 180 | 380 | 130×130 | 140 | 282 | 52×2 | 40 | 180 | M160×4 | 160 | 900 |

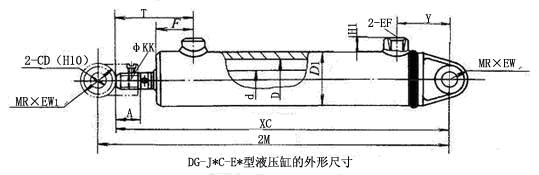

缸径 D | D1 | XC | ZM | A | PL | Y | H1 | φKK | 2-EE | MR×EW | MR×EW1 | 2-CD (H10) |
40 | 60 | 200 | 226 | 29 | 43 | 59 | 15 | M20×1.5 | 3/8״ | 20×22 | 45×37.5 | 16 |
50 | 70 | 242 | 276 | 34 | 52 | 66 | 15 | M24×1.5 | 3/8״ | 25×28 | 56×45 | 20 |
63 | 83 | 274 | 317 | 36 | 59 | 79 | 20 | M30×1.5 | 1/2״ | 35.5×40 | 71×60 | 31.5 |
80 | 102 | 306 | 359 | 42 | 57 | 94 | 20 | M39×1.5 | 1/2״ | 42.5×50 | 90×75 | 40 |
100 | 127 | 369 | 427 | 62 | 66 | 111 | 24 | M48×1.5 | 3/4״ | 53×63 | 112×95 | 50 |
125 | 152 | 421 | 496 | 70 | 70 | 136 | 24 | M64×2 | 3/4״ | 67×80 | 140×118 | 63 |
150 | 194 | 481 | 566 | 80 | 78 | 169 | 25 | M80×2 | 1״ | 75×80 | 170×135 | 71 |

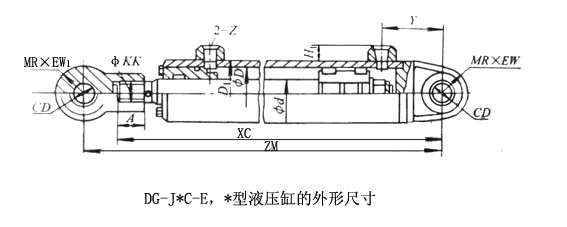

缸径D | D1 | XC | ZM | A | Y | H1 | φKK | MR×EW | MR×EW1 | 2-EE | φCD |
40 | 60 | 206 | 228 | 29 | 62 | 45 | M20×1.5 | 20×22 | 23×37.5 | 3/8״ | 16 |
50 | 70 | 242 | 268 | 34 | 68 | 50 | M24×1.5 | 25×28 | 28×45 | 3/8״ | 20 |
63 | 76 83 | 281 | 320 | 36 | 84 | 58 61.5 | M30×1.5 | 35×40 | 35.5×60 | 1/2״ | 32 |
80 | 102 105 | 312 | 360 | 42 | 96 | 71 72.5 | M39×1.5 | 43×50 | 45×75 | 1/2״ | 40 |
100 | 121 127 | 372 | 425 | 62 | 115 | 84.5 87.5 | M48×1.5 | 53×63 | 56×95 | 3/4״ | 50 |
125 | 152 159 | 428 | 498 | 70 | 140 | 100 103.5 | M64×2 | 67×80 | 70×118 | 3/4״ | 63 |
150 | 180 185 | 492 | 572 | 80 | 170 | 115 117.5 | M80×2 | 75×80 | 85×135 | 1״ | 70 |
